Connector End View (C3368A) - REAR WINDOW DEFROST GRID

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C3368A

Description

REAR WINDOW DEFROST GRID

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD347 (BK-VT)	14	GROUND - PILLAR C OR QUARTER PANEL LEFT

Available Pigtail Kits

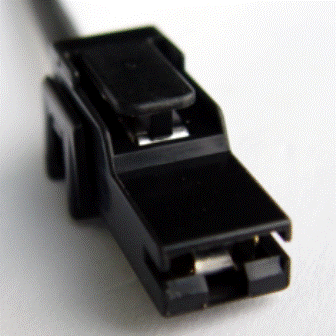

Pigtail Kit Part Number

WPT-371

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-KBA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Cigar Lighter

Horn

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Isolater Antenna

Module - Radio Power Antenna

Relay - Starter Motor

Switch - Park Brake

Terminal - Rear Window Defroster Grid

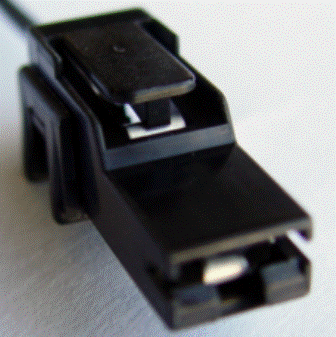

Pigtail Kit Part Number

WPT-434

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MFA

Gauge:

16 18

Pin material:

Tin

Cavities:

Vehicle Uses

Lamp - Map
