Connector End View (C3355) - EVAP VAPOR BLOCKING VALVE

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C3355

Description

EVAP VAPOR BLOCKING VALVE

Color

Harness

14405

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE420 (GY-VT)	20	CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC)
2	CBK02 (GN)	16	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)

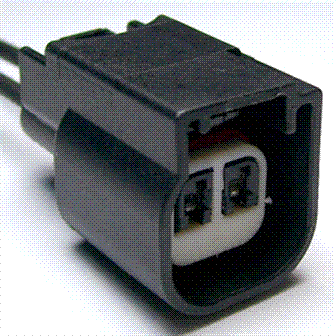

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1243

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-RPC

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Actuator - Door Lock - LH - Rear

Actuator - Door Lock - RH - Rear

Handle - Decklid

Lamp - Headlamp - High/Low Beam

Lamp - Headlamp - Low Beam

Lamp - License

Lamp - Rear Turn

Lamp - Side Marker

Sensor - Knock

Sensor - Seat Track Position

Sensor - Throttle Position

Sensor - Turbine Shaft Speed

Sensor - Water in Fuel

Switch - Deck Lid / Lift Gate Ajar

Switch - Door Ajar / Interior Lamp

Switch - Hood Ajar

Switch - Lift Gate Glass Ajar

Switch - Stop Lamp

Valve - Vapor Management
