Connector End View (C3329) - SIDE AIR CURTAIN MODULE, PASSENGER
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3329
Description
SIDE AIR CURTAIN MODULE, PASSENGER
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CR111 (BN-WH) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + |
|
|
2 |
RR111 (YE-VT) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - |
|

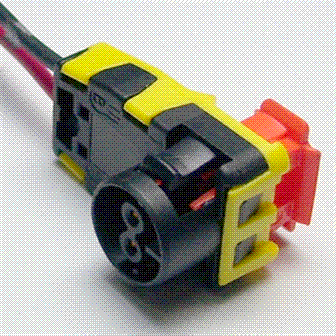

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1225 |
Service Part Number: BU2Z-14S411-BHA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger) |
