Connector End View (C3265A) - FRONT SEAT CLIMATE CONTROL MODULE (SCME)

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C3265A

Description

FRONT SEAT CLIMATE CONTROL MODULE (SCME)

Color

Harness

14D230

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
A	CHS07 (GY-BU)	4	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +
B	RHS07 (BU)	4	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER -
C	CHS06 (BU-BN)	4	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER +
D	RHS06 (WH)	4	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER -
E	CBX01 (GN-RD)	4	POWER - SEAT # RUN/START
F	CBX01 (GN-RD)	4	POWER - SEAT # RUN/START
G	CHS02 (YE-BU)	4	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +
H	RHS02 (BU-OG)	4	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER -
J	CHS01 (GY-VT)	4	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER +
K	RHS01 (WH-VT)	4	CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER -
L	*	*	Not Used
M	GD904 (BK-BU)	4	Ground

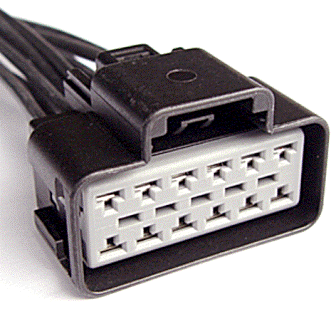

Available Pigtail Kits

Pigtail Kit Part Number

WPT-928

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-ZMB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Module - Climate Control Seat

Switch - Seat (driver)

Switch - Seat (passenger)
