Connector End View (C3216) - LUMBAR MOTOR, PASSENGER SEAT
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3216
Description
LUMBAR MOTOR, PASSENGER SEAT
Color
BK
Harness
14D233
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPS19 (GY-VT) |
18 |
SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE |
|
|
2 |
CPS18 (BN-GN) |
18 |
SWITCH - DRIVER LUMBAR PUMP |
|
Available Pigtail Kits |
|
|

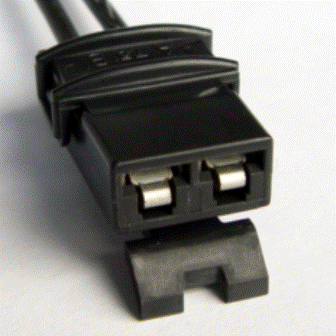

Pigtail Kit Part Number WPT-687 |
Service Part Number: 3U2Z-14S411-ZAA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Air Suspension Compressor Switch - Dimmer (Instrument Panel) |
