Connector End View (C3186) - RUNNING BOARD MOTOR, RIGHT

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C3186

Description

RUNNING BOARD MOTOR, RIGHT

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR45 (VT-GY)	20	CTRL MOD. - POWER RUNNING BOARDS # PASSENGER STOW
2	*	*	Not Used
3	CPR44 (BN-WH)	20	CTRL MOD. - POWER RUNNING BOARDS # PASSENGER DEPLOY
4	CPR47 (GY-BN)	22	CTRL MOD. - POWER RUNNING BOARDS # SENSOR +
5	VPR46 (GY-OG)	22	SENSOR. - POWER RUNNING BOARDS # PASSENGER POSITION
6	RPR47 (BU-GN)	22	CTRL MOD. - POWER RUNNING BOARDS # SENSOR -

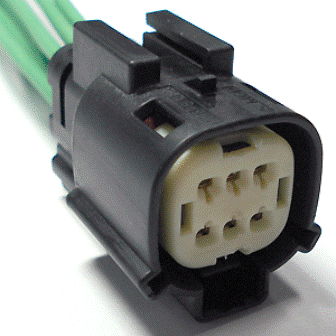

Available Pigtail Kits

Pigtail Kit Part Number

WPT-971

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FEAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Connector - Inline

Lamp - Headlamp - High/Low Beam

Lamp - Park/Turn/Stop

Motor - Engine Cooling Fan

Motor - Running Board
