Connector End View (C3182) - HEATED SEAT SWITCH, REAR

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C3182

Description

HEATED SEAT SWITCH, REAR

Color

Harness

14B079

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION
2	CHS31 (YE)	26	SWITCH - SEAT HEATER REAR COMMON OR LEFT
3	CHS80 (BU)	26	SWITCH - SEAT HEATER REAR RIGHT
4	CHS53 (WH)	26	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR LOW
5	CHS52 (BU)	26	CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR HIGH
6	CHS49 (VT)	26	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR LOW
7	CHS48 (YE)	26	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR HIGH
8	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE

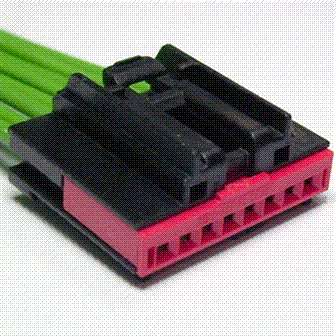

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1219

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DAAC

Gauge:

Pin material:

Silver

Cavities:
