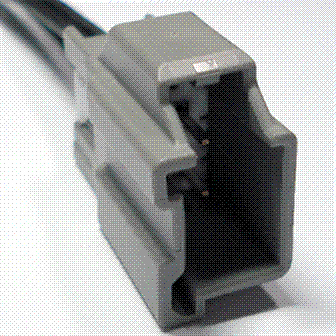

Connector End View (C3169) - SEAT CUSHION HEATER, RIGHT REAR

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C3169

Description

SEAT CUSHION HEATER, RIGHT REAR

Color

Harness

14A698

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS54 (WH-GN)	20	CTRL MOD. - REAR HEATED SEAT RIGHT # CUSHION HEATER +
2	VHS45 (GY-BN)	20	SENSOR - CUSHION TEMP REAR RIGHT
3	RHS41 (GN-BN)	20	CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP
4	RHS54 (GY-OG)	20	CTRL MOD. - REAR HEATED SEAT RIGHT # CUSHION HEATER -

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1076

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BUB

Gauge:

Pin material:

Tin (greased)

Cavities:
