Connector End View (C3154B) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
Connector: C3154B
Description
AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VME06 (GN) |
22 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP + |
|
|
2 |
VME07 (WH) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + |
|
|
3 |
VME08 (GN-OG) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER + |
|
|
4 |
VME09 (WH-GN) |
22 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
VME10 (WH-VT) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) + |
|
|
7 |
VME11 (VT-OG) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER + |
|
|
8 |
VME12 (BN-WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + |
|
|
9 |
RME06 (GY-YE) |
22 |
CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP - |
|
|
10 |
RME07 (WH-BN) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - |
|
|
11 |
RME08 (GY-OG) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER - |
|
|
12 |
RME09 (BN-YE) |
22 |
CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
RME10 (WH-OG) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) - |
|
|
15 |
RME11 (YE-OG) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER - |
|
|
16 |
RME12 (BN-BU) |
18 |
CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - |
|

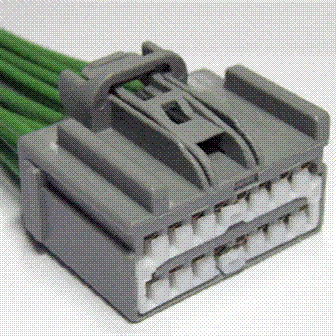

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1145 |
Service Part Number: BU2Z-14S411-GA Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses Mirror - Rearview (electrochromatic) Radio - Amplifier |
