Connector End View (C3154A) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VDB29 (GN-BU)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH

2

VME09 (GN)

26

CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) +

3

SME56 (BN)

26

CTRL MOD. - AUDIO # SUBWOOFER 2ND ENABLE

4

VME12 (WH)

26

CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) +

5

VME80 (VT)

26

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+)

6

*

*

Not Used

7

VME07 (WH)

26

CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) +

8

VME22 (VT)

26

CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO +

9

VME10 (VT)

26

CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) +

10

VME06 (GN)

26

CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP +

11

VDB30 (WH-GN)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW

11

VDB30 (WH-GN)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW

12

RME09 (BN)

26

CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) -

13

*

*

Not Used

14

RME12 (BU)

26

CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) -

15

RME80 (BU)

26

CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-)

16

*

*

Not Used

17

RME07 (BN)

26

CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) -

18

RME22 (GN)

26

CTRL MOD. - AUDIO # SUBWOOFER/AMPLIFIER AUDIO -

19

RME10 (OG)

26

CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT DOOR (WOOFER) -

20

RME06 (GY)

26

CTRL MOD. - AUDIO # SPEAKER CENTER FRONT IP -

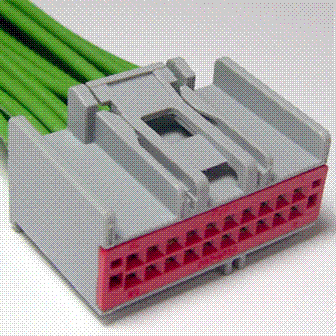

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1199

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FCB

Gauge:

18

Pin material:

Silver

Cavities:

20

Vehicle Uses

Instrument Cluster

Module - Seat Memory

Monitor - Video/DVD

Radio - Amplifier

Switch - Heater A/C Blower (Rear)
