Connector End View (C3145) - POWER SLIDING WINDOW MOTOR, REAR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3145
Description
POWER SLIDING WINDOW MOTOR, REAR
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPW68 (VT-OG) |
14 |
CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # DOWN |
|
|
2 |
CPW67 (BN-VT) |
14 |
CTRL MOD. - WINDOW MOTOR REAR (BACKLIGHT) # UP |
|

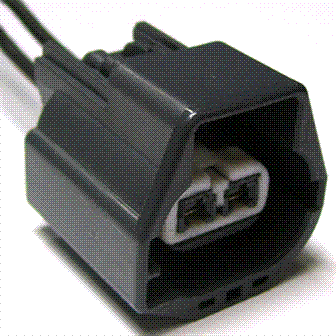

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1336 |
Service Part Number: DU2Z-14S411-KA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Motor - Fuel Filler Door Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear |
