Connector End View (C3133) - INLINE
Inline C3133
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

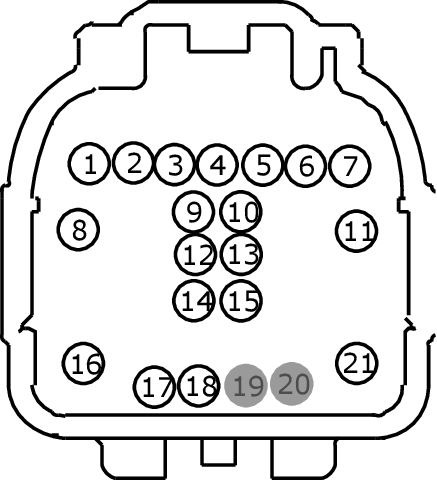

MALE
Harness 14B079

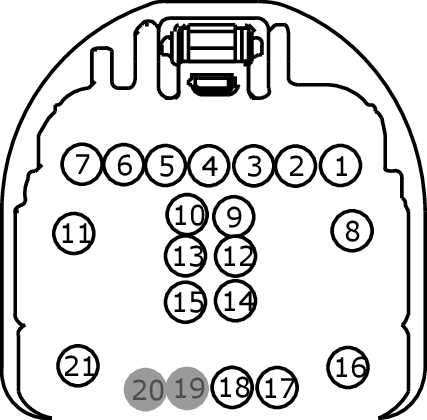

FEMALE
Harness 14A005
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CBX07 (GN) |
26 |
|
|
2 |
CRB05 (GN) |
26 |
|
|
3 |
CLN09 (YE-GN) |
22 |
|
|
4 |
RYA03 (BU) |
26 |
|
|
5 |
LYA18 (GN) |
26 |
|
|
6 |
HYA02 (OG-WH) |
18 |
|
|
7 |
HYA01 (OG-GN) |
18 |
|
|
8 |
CBB91 (BN) |
16 |
|
|
9 |
VPK07 (VT) |
20 |
|
|
10 |
RPK07 (GN-OG) |
20 |
|
|
11 |
CBB92 (GN-WH) |
16 |
|
|
12 |
CHS31 (YE) |
26 |
|
|
13 |
CHS80 (BU) |
26 |
|
|
14 |
CHS53 (WH) |
26 |
|
|
15 |
CHS52 (BU) |
26 |
|
|
16 |
CBB90 (YE-OG) |
16 |
|
|
17 |
CHS48 (YE) |
26 |
|
|
18 |
CHS49 (VT) |
26 |
|
|
19 |
* |
* |
|
|
20 |
* |
* |
|
|
21 |
GD238 (BK-WH) |
14 |
center console |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CBX07 (GN-RD) |
22 |
|
|
2 |
CRB05 (GN) |
26 |
|
|
2 |
CRB05 (GN) |
26 |
|
|
3 |
CLN09 (YE-GN) |
22 |
|
|
3 |
CLN09 (YE-GN) |
22 |
|
|
4 |
RYA03 (BU-BN) |
22 |
|
|
5 |
LYA18 (GN-WH) |
22 |
|
|
6 |
HYA02 (OG-WH) |
18 |
|
|
7 |
HYA01 (OG-GN) |
18 |
|
|
8 |
CBB91 (BN) |
16 |
|
|
9 |
VPK07 (VT) |
26 |
|
|
10 |
RPK07 (GN) |
26 |
|
|
11 |
CBB92 (GN-WH) |
16 |
|
|
12 |
CHS31 (YE) |
26 |
|
|
13 |
CHS80 (OG) |
26 |
|
|
14 |
CHS53 (WH) |
26 |
|
|
15 |
CHS52 (BU) |
26 |
|
|
16 |
CBB90 (YE-OG) |
16 |
|
|
17 |
CHS48 (YE) |
26 |
|
|
18 |
CHS49 (VT) |
26 |
|
|
19 |
* |
* |
|
|
20 |
* |
* |
