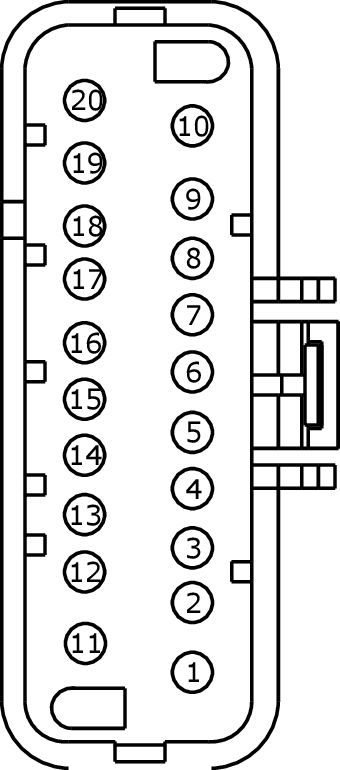

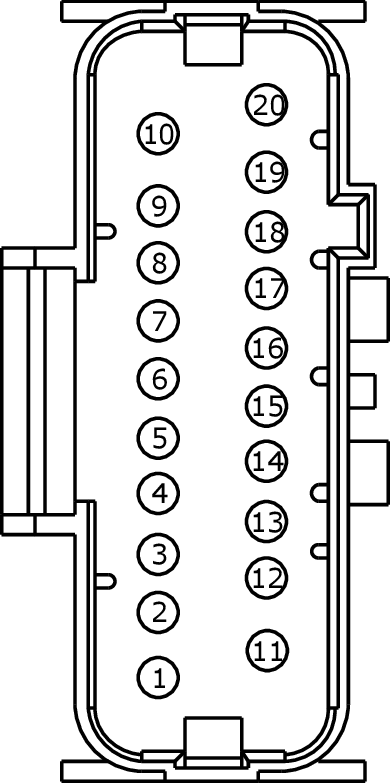

Connector End View (C3050) - INLINE
Inline C3050
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14D232
FEMALE
Harness 14D231
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
GD904 (BK-BU) |
16 |
|
|
2 |
CPS95 (GN-VT) |
20 |
|
|
3 |
CPS96 (WH-OG) |
20 |
|
|
4 |
VDB06 (GY-OG) |
20 |
|
|
5 |
VDB07 (VT-OG) |
20 |
|
|
6 |
VPS12 (VT-OG) |
20 |
|
|
7 |
RPS12 (GN-OG) |
20 |
|
|
8 |
CPS18 (BN-GN) |
18 |
|
|
9 |
CPS19 (GY-VT) |
18 |
|
|
10 |
CPS07 (GY-BN) |
14 |
|
|
11 |
CPS08 (VT-OG) |
14 |
|
|
12 |
CHS09 (GY) |
20 |
|
|
13 |
RHS03 (GY-OG) |
18 |
|
|
14 |
RHS01 (WH-VT) |
14 |
heated/cooled seats |
|
14 |
RHS02 (BU-OG) |
16 |
heated seats |
|
15 |
CHS01 (GY-VT) |
14 |
|
|
16 |
CHS14 (GN) |
20 |
|
|
17 |
CHS29 (WH-BU) |
20 |
|
|
18 |
CHS12 (YE-GN) |
16 |
|
|
19 |
CHS03 (GN-BN) |
18 |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
GD904 (BK-BU) |
16 |
|
|
2 |
CPS95 (GN-VT) |
20 |
|
|
3 |
CPS96 (WH-OG) |
20 |
|
|
4 |
VDB06 (GY-OG) |
20 |
|
|
5 |
VDB07 (VT-OG) |
20 |
|
|
6 |
VPS12 (GY-OG) |
20 |
|
|
7 |
RPS12 (YE-VT) |
20 |
|
|
8 |
CPS18 (BN-GN) |
18 |
|
|
9 |
CPS19 (GY-VT) |
18 |
|
|
10 |
CPS29 (WH-BN) |
14 |
|
|
11 |
CPS30 (VT-BN) |
14 |
|
|
12 |
CHS09 (GY) |
20 |
|
|
13 |
RHS03 (GY-OG) |
18 |
|
|
14 |
GD904 (BK-BU) |
14 |
heated seats |
|
14 |
RHS01 (WH-VT) |
14 |
heated/cooled seats |
|
15 |
CHS01 (GY-VT) |
14 |
|
|
16 |
CHS14 (GN) |
20 |
|
|
17 |
CHS29 (WH-BU) |
20 |
|
|
18 |
CHS12 (YE-GN) |
16 |
|
|
19 |
CHS03 (GN-BN) |
18 |
