Connector End View (C3039) - SEAT BACKREST BLOWER MOTOR, PASSENGER SIDE

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C3039

Description

SEAT BACKREST BLOWER MOTOR, PASSENGER SIDE

Color

Harness

14D233

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS06 (BU-BN)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER +
2	RHS06 (WH)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER -
3	CHS08 (BN-YE)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +
4	RHS08 (VT-WH)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -
5	VHS36 (YE-BU)	20	SENSOR - BACK TEMP. PASSENGER
6	*	*	Not Used
7	VHS21 (BU-WH)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL
8	RHS20 (GN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP.

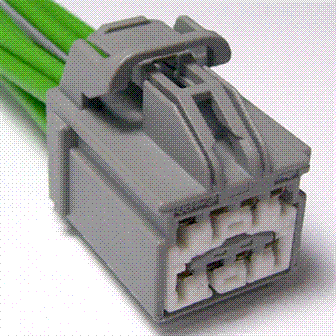

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1128

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BCB

Gauge:

Pin material:

Silver

Cavities:
