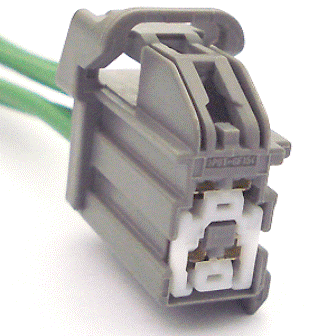

Connector End View (C2600) - ADJUSTABLE STEERING COLUMN MOTOR, TILT

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C2600

Description

ADJUSTABLE STEERING COLUMN MOTOR, TILT

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP04 (GY)	22	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP
2	CPP23 (VT-GY)	22	CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN
3	CPP05 (WH-VT)	22	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON
4	VPP08 (WH)	22	SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-977

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-LUB

Gauge:

Pin material:

Silver

Cavities:
