Connector End View (C2498A) - TRAILER TOW MODULE
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2498A
Description
TRAILER TOW MODULE
Color
GY
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBB36 (GN-RD) |
16 |
FUSE - 36 OR CIRCUIT BREAKER |
|
|
2 |
SBB35 (BU-RD) |
16 |
FUSE - 35 OR CIRCUIT BREAKER |
|
Available Pigtail Kits |
|
|

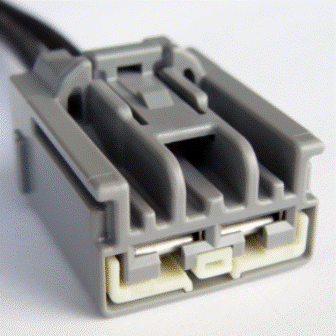

Pigtail Kit Part Number WPT-236 |
Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) |
