Connector End View (C2436) - LEFT FLOOR DISCHARGE AIR TEMPERATURE SENSOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2436
Description
LEFT FLOOR DISCHARGE AIR TEMPERATURE SENSOR
Color
BK
Harness
19F561
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VH410 (GY-BU) |
20 |
SENSOR - DISCHARGE TEMP. # LEFT 2ND (LEFT FRONT FLOOR) |
|
|
2 |
RH111 (GY-BU) |
20 |
CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
|
Available Pigtail Kits |
|
|

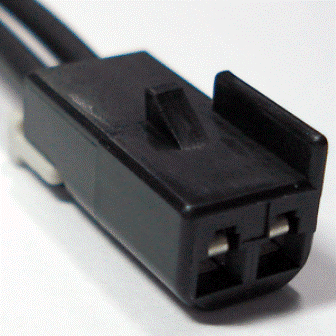

Pigtail Kit Part Number WPT-967 |
Service Part Number: 3U2Z-14S411-CZB Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Module - Auto Lamps Sensor - EATC In Car Temperature Sensor - Sunload Switch - Overdrive Cancel |
