Connector End View (C2420) - TWEETER, RIGHT FRONT
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2420
Description
TWEETER, RIGHT FRONT
Color
BK
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VME11 (VT-OG) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER + |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
RME11 (YE-OG) |
20 |
CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER - |
|
Available Pigtail Kits |
|
|

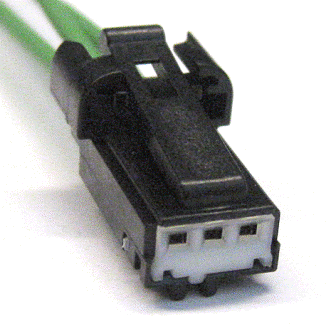

Pigtail Kit Part Number WPT-911 |
Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer |
