Connector End View (C2398) - GLOBAL POSITIONING SYSTEM MODULE (GPSM)
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2398
Description
GLOBAL POSITIONING SYSTEM MODULE (GPSM)
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP32 (VT-RD) |
22 |
FUSE - 32 OR CIRCUIT BREAKER |
|
|
2 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
|
3 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
GD215 (BK-GY) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
|

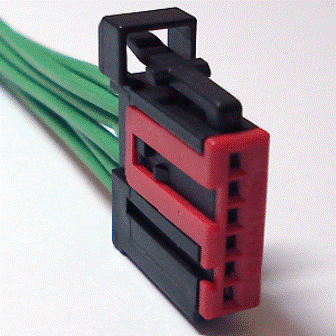

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-958 |
Service Part Number: 6U2Z-14S411-LB Gauge: 18 20 Pin material: Tin & Silver Cavities: 6 Vehicle Uses Antenna - GPS Module - Global Positioning |
