Connector End View (C2293B) - DC/AC INVERTER MODULE
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2293B
Description
DC/AC INVERTER MODULE
Color
OG
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
LYA03 (YE-VT) |
22 |
CTRL MOD. - DC/AC INVERTER # LED INDICATOR + |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
HYA02 (OG-WH) |
16 |
CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B) |
|
|
4 |
RYA03 (BU-BN) |
22 |
CTRL MOD. - DC/AC INVERTER # LED INDICATOR - |
|
|
5 |
LYA18 (GN-WH) |
22 |
CTRL MOD. - DC/AC INVERTER 2 # LED INDICATOR + |
|
|
6 |
HYA01 (OG-GN) |
16 |
CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A) |
|

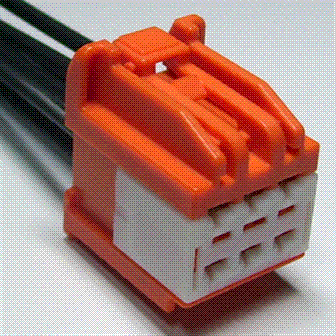

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1330 |
Service Part Number: DU2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: 6 Vehicle Uses Inverter - DC to AC |
