Connector End View (C2292) - AC OUTLET 1
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2292
Description
AC OUTLET 1
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
HYA02 (OG-WH) |
16 |
CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B) |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
HYA01 (OG-GN) |
16 |
CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A) |
|
|
4 |
RYA03 (BU) |
26 |
CTRL MOD. - DC/AC INVERTER # LED INDICATOR - |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
LYA03 (YE) |
26 |
CTRL MOD. - DC/AC INVERTER # LED INDICATOR + |
|
Available Pigtail Kits |
|
|

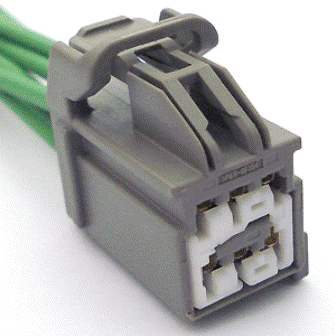

Pigtail Kit Part Number WPT-962 |
Service Part Number: 3U2Z- 14S411-JBB Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Mating Connector WPT-1299 Switch - Gear Shift Select/Neutral Safety Switch - Overdrive Cancel Switch - Power Sliding Door |
