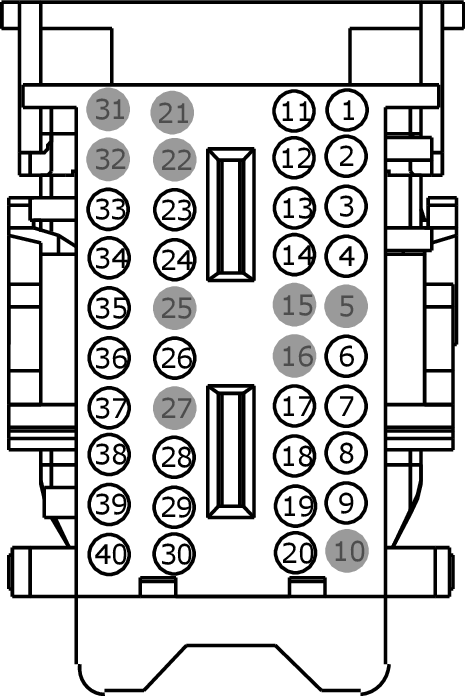

Connector End View (C2280F) - BODY CONTROL MODULE (BCM)
Connector: C2280F
Description
BODY CONTROL MODULE (BCM)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VMP21 (WH-BN) |
22 |
SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE |
|
|
2 |
CLS18 (GY-BN) |
22 |
CTRL MOD. - STOP/TURN LEFT (INBOARD) |
|
|
3 |
SDC57 (BU-OG) |
20 |
CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR |
|
|
4 |
VDN03 (GY-VT) |
20 |
CTRL MOD. - LIN BUS # BCM 3 |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
CLS56 (YE-GN) |
22 |
LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT |
|
|
7 |
LMP06 (VT-GY) |
22 |
CTRL MOD. - PARKING AID # SENSORS FRONT + |
|
|
8 |
LDC59 (BU-WH) |
20 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + |
|
|
9 |
CDC43 (YE-BU) |
22 |
RELAY - ELECTRICAL STEERING COLUMN LOCK |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
VMP20 (GY-OG) |
22 |
SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE |
|
|
12 |
CAT17 (BN) |
22 |
RELAY - TRAILER TOW PARK LAMPS (COLOR TO SAE 1239) |
|
|
13 |
CLS19 (VT-OG) |
22 |
CTRL MOD. - STOP/TURN RIGHT (INBOARD) |
|
|
14 |
CPL25 (BU-OG) |
20 |
SWITCH - HOOD # AJAR |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
CLS58 (BU-WH) |
22 |
LAMP - TURN FRONT RIGHT # SIGNAL OUT |
|
|
18 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
|
|
19 |
RDC59 (GY-BN) |
20 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR - |
|
|
20 |
CRH04 (VT-GN) |
22 |
CTRL MOD. - RELAY HORN |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
CDC71 (YE-GY) |
22 |
CTRL MOD. - POWER OUTLET ENABLE OR SET |
|
|
24 |
CDC64 (WH-BU) |
22 |
RELAY - RUN, ACCESSORY |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
CE226 (YE-VT) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
|
|
27 |
* |
* |
Not Used |
|
|
28 |
CMC19 (GY-VT) |
20 |
SWITCH - LOW LEVEL BRAKE FLUID |
|
|
29 |
CE261 (GY-OG) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES) |
|
|
30 |
CLS06 (GN-OG) |
20 |
CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT |
|
|
31 |
* |
* |
Not Used |
|
|
32 |
* |
* |
Not Used |
|
|
33 |
CDC72 (BN-WH) |
22 |
CTRL MOD. - POWER OUTLET DISABLE OR RESET |
|
|
34 |
CAC16 (VT-OG) |
22 |
SWITCH - UPFITTER #6 |
|
|
35 |
RMP06 (YE-OG) |
22 |
CTRL MOD. - PARKING AID # SENSORS FRONT - |
|
|
36 |
CLF62 (VT-WH) |
22 |
CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT |
|
|
37 |
CLS07 (BN-YE) |
20 |
CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT |
|
|
38 |
CLS25 (YE-VT) |
22 |
CTRL MOD. - TURN LAMP RIGHT FRONT |
|
|
39 |
CLS21 (BU-GN) |
22 |
CTRL MOD. - TURN LAMP LEFT FRONT |
|
|
40 |
CLF61 (GY-BU) |
22 |
CTRL MOD. - DAYTIME RUNNING LIGHT LEFT |
