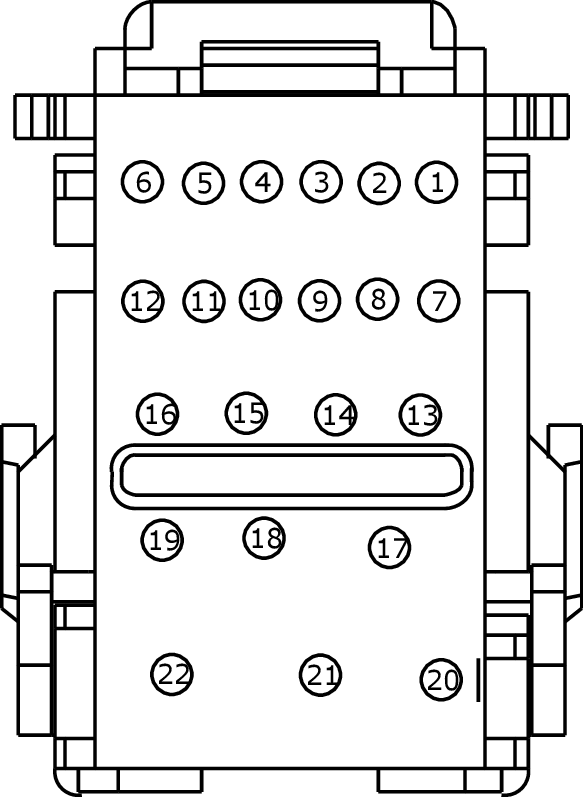

Connector End View (C2280A) - BODY CONTROL MODULE (BCM)
Connector: C2280A
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
CBP35 (YE-GY) |
22 |
FUSE - 35 OR CIRCUIT BREAKER |
|
|
5 |
IGRUN (WH-BN) |
20 |
FUSE - 20 OR CIRCUIT BREAKER |
crew chief |
|
6 |
CBP21 (BU-GY) |
22 |
FUSE - 21 OR CIRCUIT BREAKER |
|
|
7 |
CBP19 (BN-WH) |
22 |
FUSE - 19 OR CIRCUIT BREAKER |
|
|
8 |
SBP13 (GY-RD) |
22 |
FUSE - 13 OR CIRCUIT BREAKER |
|
|
9 |
SBP32 (VT-RD) |
22 |
FUSE - 32 OR CIRCUIT BREAKER |
|
|
10 |
SBP12 (GN-RD) |
22 |
FUSE - 12 OR CIRCUIT BREAKER |
|
|
11 |
SBP17 (RD) |
22 |
FUSE - 17 OR CIRCUIT BREAKER |
|
|
12 |
SBP18 (YE-RD) |
20 |
FUSE - 18 OR CIRCUIT BREAKER |
|
|
12 |
SBP18 (YE-RD) |
22 |
FUSE - 18 OR CIRCUIT BREAKER |
|
|
13 |
CBP04 (VT) |
22 |
FUSE - 4 OR CIRCUIT BREAKER |
|
|
14 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # START |
|
|
15 |
CBP36 (BU-BN) |
22 |
FUSE - 36 OR CIRCUIT BREAKER |
|
|
15 |
CBP36 (BU-BN) |
20 |
FUSE - 36 OR CIRCUIT BREAKER |
|
|
16 |
CBP37 (WH) |
22 |
FUSE - 37 OR CIRCUIT BREAKER |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
SBP15 (WH-RD) |
22 |
FUSE - 15 OR CIRCUIT BREAKER |
|
|
20 |
SBP32 (VT-RD) |
22 |
FUSE - 32 OR CIRCUIT BREAKER |
|
|
21 |
SBP31 (WH-RD) |
18 |
FUSE - 31 OR CIRCUIT BREAKER |
|
|
22 |
SBP33 (RD) |
18 |
FUSE - 33 OR CIRCUIT BREAKER |
