Connector End View (C2195) - IGNITION SWITCH-PUSH BUTTON START

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

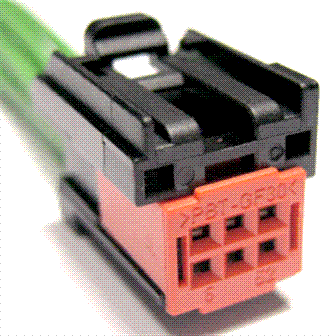

Connector: C2195

Description

IGNITION SWITCH-PUSH BUTTON START

Color

Harness

14C210

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CDC35 (BU)	26	SWITCH - IGNITION # START
2	CPK36 (VT)	26	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED
3	GD216 (BK)	26	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT
4	SBP18 (RD)	26	FUSE - 18 OR CIRCUIT BREAKER
5	VLN04 (GY)	26	CTRL MOD. - IP/SWITCH ILLUMINATION
6	CPK35 (YE)	26	CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 +

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1164

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-JB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Switch - Deck Lid / Hatch Release

Switch - Deck Lid / Lift Gate Ajar

Switch - Hazard Warning

Switch - Heated Back Light (Rear Defrost)

Switch - Power Liftgate

Switch - Reverse Park Aid

Switch - Start/Stop

Switch - Sunshade

Switch - Traction Control
