Connector End View (C2123) - FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C2123

Description

FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP32 (VT-RD)	22	FUSE - 32 OR CIRCUIT BREAKER
2	*	*	Not Used
3	*	*	Not Used
4	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH
5	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW
6	VMP19 (WH)	26	CAMERA - PARKING AID REAR VIDEO +
7	*	*	Not Used
8	*	*	Not Used
9	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT
10	*	*	Not Used
11	*	*	Not Used
12	RMP19 (BN)	26	CAMERA - PARKING AID REAR VIDEO -

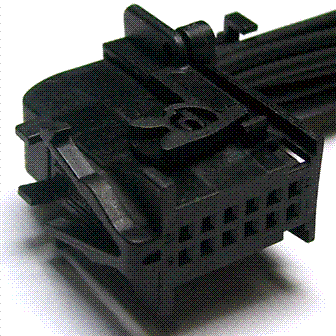

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1278

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ABA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Message Center

Module - Driver Information

Module - Front Interface
