Connector End View (C2089) - ADJUSTABLE PEDAL SWITCH

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C2089

Description

ADJUSTABLE PEDAL SWITCH

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPP09 (VT-OG)	22	SWITCH - ADJUST. PEDALS # FORWARD
2	SBP31 (WH-RD)	18	FUSE - 31 OR CIRCUIT BREAKER
3	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION
4	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE
5	CPP10 (BN-BU)	22	SWITCH - ADJUST. PEDALS # REARWARD
6	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE

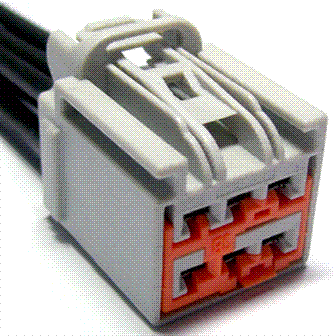

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1019

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-XVB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Junction Box - Relay

Switch - Adjustable Pedal

Switch - Moon Roof/Sun Roof

Switch - Power Window - Driver

Switch - Power Window - LH - Rear

Switch - Power Window - Passenger (Front)

Switch - Power Window - Quarter Glass

Switch - Power Window - RH - Rear

Switch - Seat Passenger Side (2nd Row)

Switch - Third Row Power Folding Seat
