Connector End View (C2033) - POWER POINT 1, INSTRUMENT PANEL
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2033
Description
POWER POINT 1, INSTRUMENT PANEL
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBB89 (VT-GY) |
16 |
FUSE - 89 OR CIRCUIT BREAKER |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
GD214 (BK-BU) |
16 |
GROUND - INSTRUMENT PANEL STRUCTURE |
|
Available Pigtail Kits |
|
|

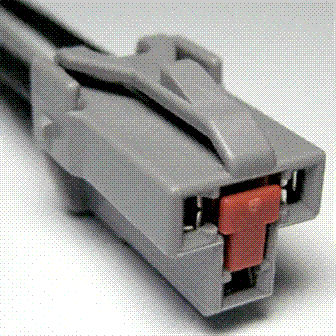

Pigtail Kit Part Number WPT-1160 |
Service Part Number: 3U2Z-14S411-SJB Gauge: 12 Pin material: Tin Cavities: 3 Vehicle Uses Cigar Lighter Lamp - Ash Tray Power Point |
