Connector End View (C2015) - PARKING BRAKE SWITCH

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C2015

Description

PARKING BRAKE SWITCH

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION
2	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT
3	CCB20 (BU)	26	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1
4	CCB23 (VT)	26	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4
5	CCB25 (BN)	26	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6
6	CCB24 (OG)	26	CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5
7	CCB22 (WH)	26	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3
8	CCB21 (GN)	26	CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2

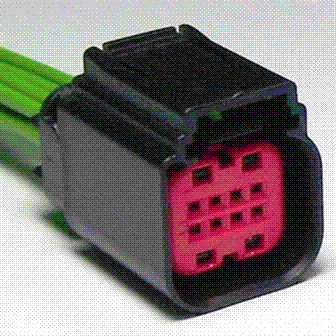

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1198

Courtesy of FORD MOTOR COMPANY

Service Part Number:

4U2Z-14S411-LC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Module - Remote Keyless Entry

Switch - Keyless Entry
