Connector End View (C1992) - IGNITION COIL-ON-PLUG 2
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1992
Description
IGNITION COIL-ON-PLUG 2
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE304 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) |
|
|
2 |
GD108 (BK-VT) |
16 |
GROUND - CHASSIS / BATTERY |
|
|
3 |
CBK04 (VT) |
16 |
FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) |
|
Available Pigtail Kits |
|
|

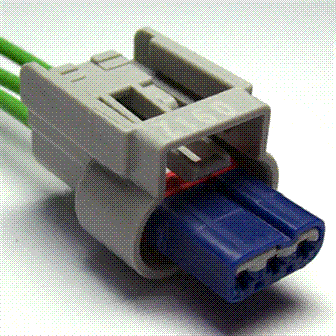

Pigtail Kit Part Number WPT-1308 |
Service Part Number: CU2Z-14S411-AVA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition Sensor - Fuel Low Pressure |
