Connector End View (C1799) - BRAKE VACUUM SENSOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1799
Description
BRAKE VACUUM SENSOR
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VCA38 (BN-VT) |
22 |
SENSOR - BRAKE VACUUM SIGNAL 1 |
|
|
2 |
RCA37 (WH-BU) |
22 |
CTRL MOD. - SENSOR BRAKE VACUUM - |
|
|
3 |
LCA37 (YE-OG) |
22 |
CTRL MOD. - SENSOR BRAKE VACUUM + |
|
Available Pigtail Kits |
|
|

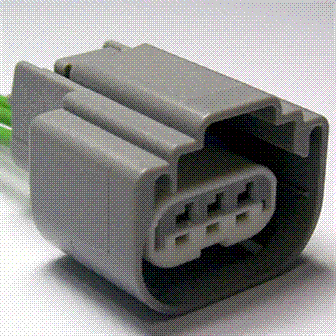

Pigtail Kit Part Number WPT-1337 |
Service Part Number: 9U2Z-14S411-AB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Brake Booster Travel Sensor - Brake Pressure Sensor - Brake Vacuum Sensor - Manifold Absolute Pressure (MAP) Sensor - Occupant Classification |
