Connector End View (C1729) - CAMSHAFT POSITION BANK 2 SENSOR 2 (CMP22)

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

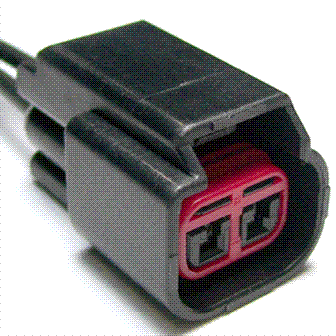

Connector: C1729

Description

CAMSHAFT POSITION BANK 2 SENSOR 2 (CMP22)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE429 (GY-OG)	20	CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION)
2	VE707 (GN-VT)	20	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-986

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SLB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Coil - Ignition

Lamp - License

Sensor - Cam Shaft Position

Sensor - Crank Shaft Position
