Connector End View (C1717) - TRANSMISSION FLUID PUMP
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1717
Description
TRANSMISSION FLUID PUMP
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBB14 (BN-RD) |
16 |
FUSE - 14 OR CIRCUIT BREAKER |
|
|
2 |
CBB26 (BU-WH) |
18 |
FUSE - 26 OR CIRCUIT BREAKER |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
RET173 (VT-GN) |
18 |
CTRL MOD. - POWERTRAIN TRANS FLUID PUMP CONTROL |
|
|
5 |
CE174 (YE-GY) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRIC WATER PUMP RELAY |
|
|
6 |
GD109 (BK-YE) |
16 |
Ground |
|

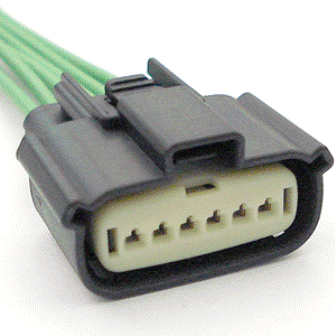

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-944 |
Service Part Number: 9U2Z-14S411-NA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Connector - Inline |
