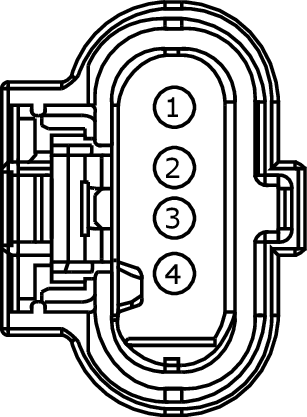

Connector End View (C1694) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1694

Description

MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)	2.7L
1	VE803 (BU-GN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) +	3.5L TIVCT
2	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	2.7L
2	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	3.5L TIVCT
3	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)	3.5L TIVCT
3	VE804 (GN-BN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +	2.7L
4	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	3.5L TIVCT
4	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	2.7L
