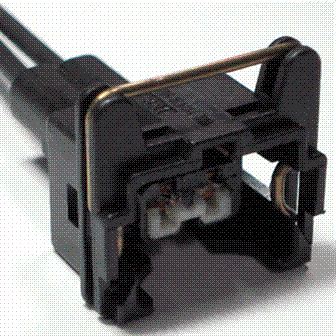

Connector End View (C1672) - TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1672
Description
TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VE824 (YE-GN) |
20 |
SENSOR - BOOST PRESSURE |
|
|
2 |
CBK03 (GY) |
18 |
FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1054 |
Service Part Number: 3U2Z-14S411-GLB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Actuator - Turbocharger Waste Gate Fuel Injector Sensor - Cam Shaft Position Sensor - Crank Shaft Position Valve - Cold Start |
