Connector End View (C1663) - FRONT VIDEO CAMERA
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

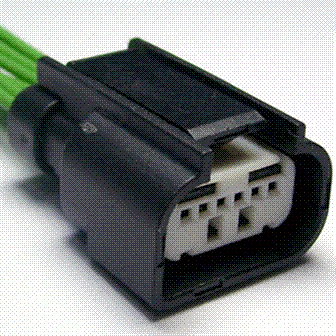

Connector: C1663
Description
FRONT VIDEO CAMERA
Color
Harness
14B242
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBBB3 (WH-BN) |
22 |
FUSE - 113 OR CIRCUIT BREAKER |
|
|
2 |
VMP24 (WH) |
22 |
CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS |
|
|
3 |
VMP42 (BN-GN) |
22 |
CAMERA - FRONT 360 VIDEO- |
|
|
4 |
VMP41 (YE) |
22 |
CAMERA - FRONT 360 VIDEO+ |
|
|
5 |
DMP41 (BK) |
20 |
CAMERA - FRONT 360 VIDEO D |
|
|
6 |
* |
* |
Not Used |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1280 |
Service Part Number: CU2Z-14S411-AEA Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Camera - Reverse Park Aid |
