Connector End View (C1661) - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1661

Description

UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)
2	CE236 (GY-VT)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21)
3	*	*	Not Used
4	VE827 (WH-GN)	18	SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21)
5	LE449 (VT-GN)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21)
6	LE450 (WH)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21)

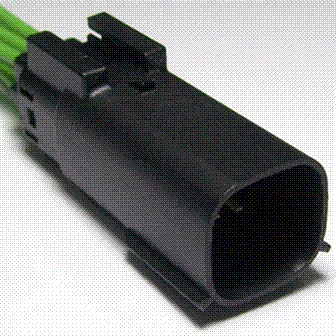

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1426

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-TA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Camera - Reverse Park Aid

Lamp - Park/Turn/Stop

Sensor - Coolant Temperature

Sensor - O2 (HEGO/ EGO)
