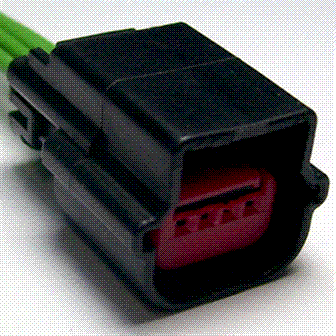

Connector End View (C1651) - ACTIVE GRILLE SHUTTER
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1651
Description
ACTIVE GRILLE SHUTTER
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD131 (BK-GY) |
22 |
GROUND - HEADLAMP PANEL/GOR RIGHT |
|
|
2 |
VDN06 (WH-GN) |
22 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 [REPLACED BY VE181] |
|
|
3 |
CBK03 (GY) |
22 |
FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) |
|
|
4 |
* |
* |
Not Used |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1307 |
Service Part Number: CU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder |
