Connector End View (C1646) - BATTERY CURRENT SENSOR
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1646
Description
BATTERY CURRENT SENSOR
Color
Harness
14B060
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SDC57 (BU-OG) |
20 |
CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR |
|
|
2 |
RDC59 (GY-BN) |
20 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR - |
|
|
3 |
LDC59 (BU-WH) |
20 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + |
|
Available Pigtail Kits |
|
|

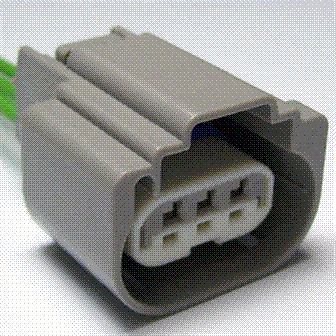

Pigtail Kit Part Number WPT-1236 |
Service Part Number: 3U2Z-14S411-FKAE Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Lamp - Headlamp - High/Low Beam |
