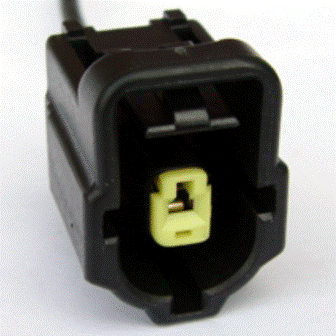

Connector End View (C1642) - ENGINE OIL PRESSURE (EOP) SWITCH
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1642
Description
ENGINE OIL PRESSURE (EOP) SWITCH
Color
NA
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CMC24 (GY) |
18 |
SWITCH - OIL PRESSURE |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-439 |
Service Part Number: 3U2Z-14S411-MHA Gauge: 14 Pin material: Tin Cavities: 1 Vehicle Uses Sensor - Oil Pressure Switch - Oil Sending Unit |
