Connector End View (C931) - FRONT INTERIOR/MAP LAMPS ASSEMBLY

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C931

Description

FRONT INTERIOR/MAP LAMPS ASSEMBLY

Color

Harness

14334

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
2	GD313 (BK-GN)	20	GROUND - PILLAR C OR QUARTER PANEL RIGHT # 2ND POINT
3	VLN04 (VT)	26	CTRL MOD. - IP/SWITCH ILLUMINATION
4	VLN33 (GY-VT)	22	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)
5	GD348 (BK-YE)	22	GROUND - PILLAR C OR QUARTER PANEL RIGHT
6	*	*	Not Used

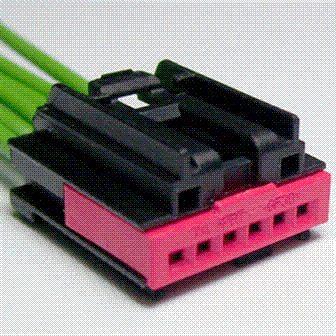

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1249

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BYAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Lamp - Dome

Lamp - Storage Compartment - Cargo

Motor - Heater A/C Mode Door

Motor - Heater/AC Blend Door

Motor - Heater/AC Inlet Door

Switch - Hazard Warning

Switch - Heated Seat

Switch - Heater A/C Blower (Rear)

Switch - Speed Control
