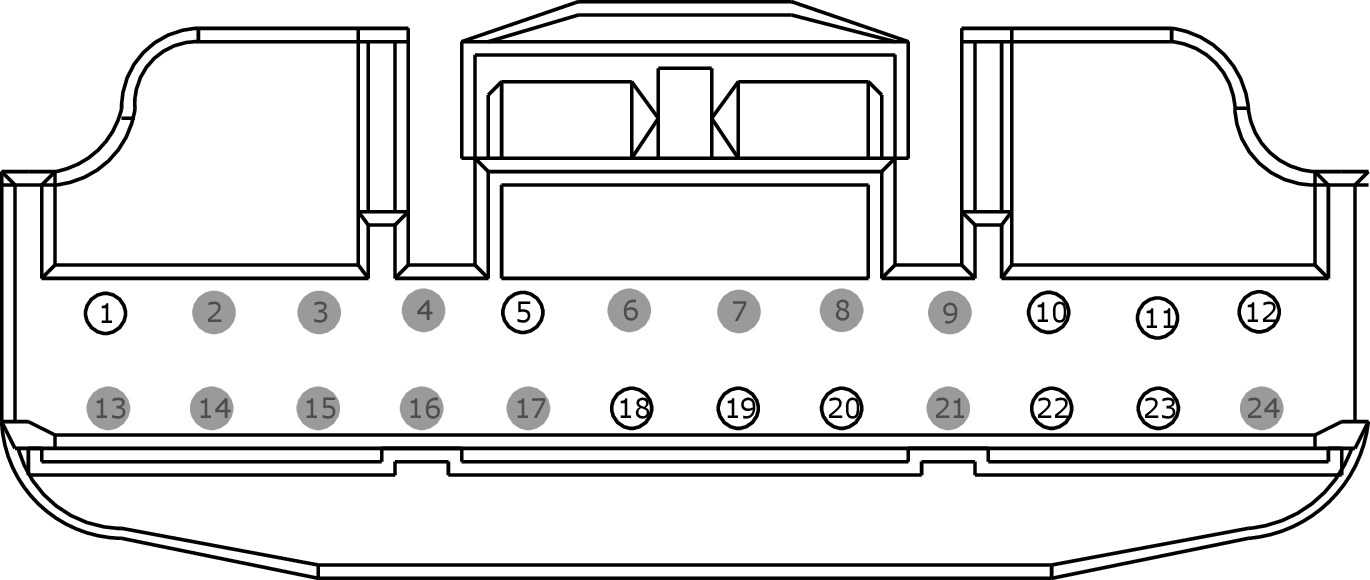

Connector End View (C930) - OVERHEAD CONSOLE
Connector: C930
Description
OVERHEAD CONSOLE
Color
Harness
14334
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD348 (BK-YE) |
22 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
CLN70 (BN-VT) |
22 |
SWITCH - OVERHEAD CONSOLE # EXTERNAL CONTROL 1 |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
11 |
VLN33 (GY-VT) |
22 |
CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE) |
|
|
12 |
CLN09 (YE-GN) |
22 |
RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
CPR31 (VT-BN) |
22 |
SWITCH - MOON/SUN ROOF OPEN |
|
|
19 |
CPR38 (WH-BU) |
22 |
SWITCH - MOON/SUN ROOF TILT |
|
|
20 |
CPR40 (YE-OG) |
22 |
SWITCH - MOON/SUN ROOF CLOSE |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
CPR86 (GY-BN) |
22 |
SWITCH - SHADE MOON/SUN ROOF OPEN |
|
|
23 |
CPR85 (GN-WH) |
22 |
SWITCH - SHADE MOON/SUN ROOF CLOSE |
|
|
24 |
* |
* |
Not Used |
