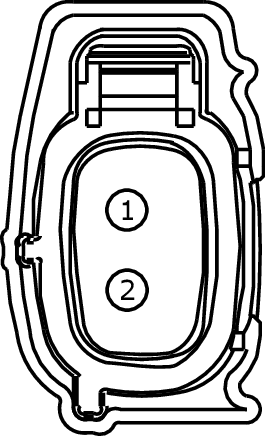

Connector End View (C1589) - FUEL INJECTION PUMP
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1589
Description
FUEL INJECTION PUMP
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE226 (YE-VT) |
14 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
|
|
2 |
RE226 (GN-VT) |
14 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - |
|

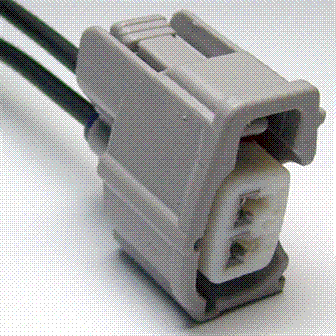

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1277 |
Service Part Number: CU2Z-14S411-UA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Solenoid - Fuel Volume Regulator Control |
