Connector End View (C1582) - CRUISE CONTROL MODULE (C-CM)

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

*

*

Not Used

2

*

*

Not Used

3

*

*

Not Used

4

GD131 (BK-GY)

22

GROUND - HEADLAMP PANEL/GOR RIGHT

5

*

*

Not Used

6

*

*

Not Used

7

VDB26 (GY-BU)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW

8

VDB25 (GN-OG)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH

9

*

*

Not Used

10

CBBB0 (YE-BU)

22

FUSE - 110 OR CIRCUIT BREAKER

11

*

*

Not Used

12

*

*

Not Used

13

*

*

Not Used

14

*

*

Not Used

15

*

*

Not Used

16

*

*

Not Used

17

*

*

Not Used

18

*

*

Not Used

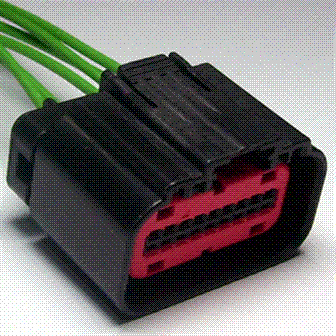

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1342

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GA

Gauge:

20

Pin material:

Silver

Cavities:

18

Vehicle Uses

Module - Adaptive Cruise Control

Pigtail Kit Part Number

WPT-1411

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-GB

Gauge:

18

Pin material:

Silver

Cavities:

18

Vehicle Uses

Module - Adaptive Cruise Control

Module - Occupant Classification

Module - Reverse Park Aid (RPA)
