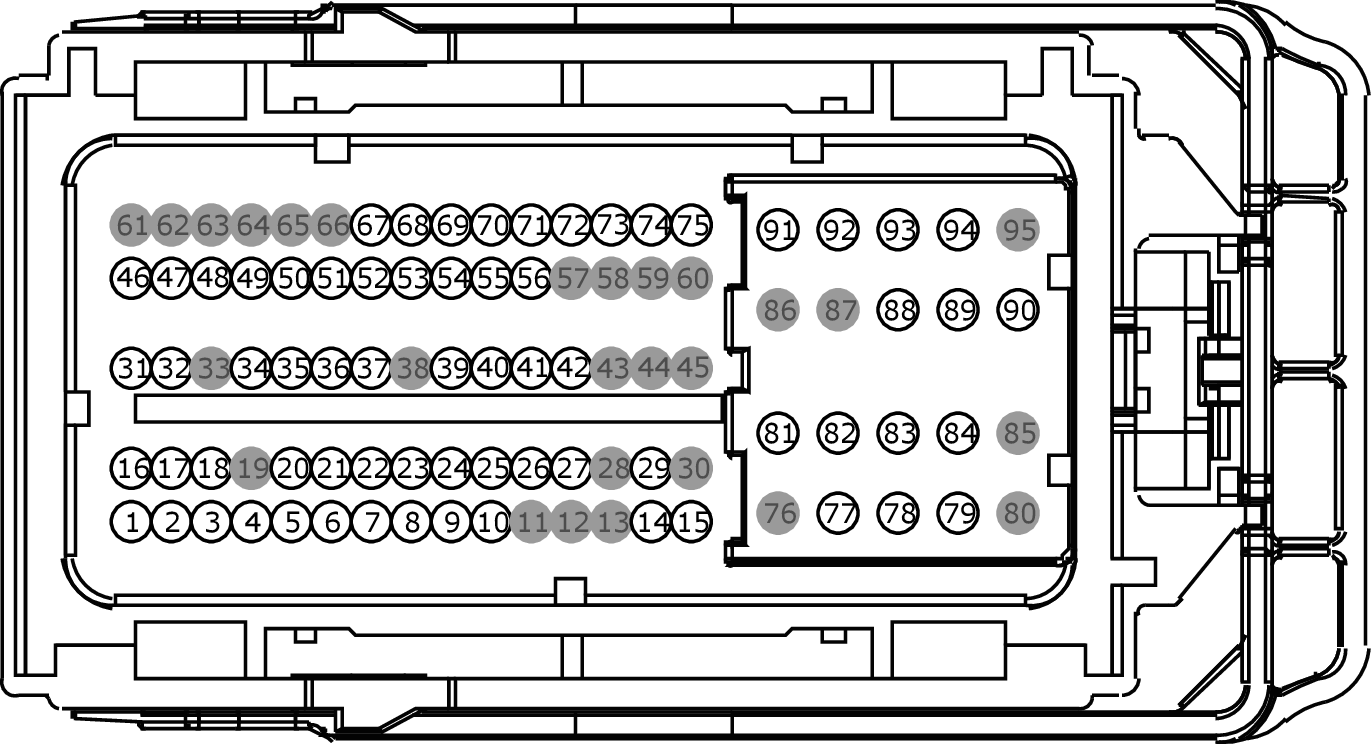

Connector End View (C1551E) - POWERTRAIN CONTROL MODULE (PCM)
Connector: C1551E
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE205 (GN-BU) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + |
|
|
2 |
CE208 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + |
|
|
3 |
CE206 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + |
|
|
4 |
CE422 (WH-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) |
|
|
5 |
CE421 (VT) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) |
|
|
6 |
CE443 (BN-VT) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4 |
|
|
7 |
CE442 (YE-GY) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3 |
|
|
8 |
LE134 (YE) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
|
|
9 |
VE819 (GN-VT) |
20 |
SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) |
|
|
10 |
VE818 (BN) |
20 |
SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
CET10 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] |
|
|
15 |
CET09 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] |
|
|
16 |
CE209 (BN) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) + |
|
|
17 |
LE111 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) |
|
|
18 |
CBK01 (BU) |
18 |
FUSE - 1 OR CIRCUIT BREAKER (VPWR F) |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
LE449 (VT-GN) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) |
|
|
21 |
LE448 (GY-BU) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) |
|
|
22 |
RET24 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) |
|
|
23 |
RE134 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) |
|
|
24 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
|
|
25 |
RET33 (WH-VT) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) - |
|
|
26 |
RET04 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) |
|
|
27 |
VE740 (VT-GY) |
18 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
RE405 (GN-WH) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) |
|
|
30 |
* |
* |
Not Used |
|
|
31 |
CE207 (VT-GY) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + |
|
|
32 |
VE803 (BU-GN) |
18 |
SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + |
|
|
33 |
* |
* |
Not Used |
|
|
34 |
LE458 (BU-WH) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) |
|
|
35 |
LE450 (WH) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) |
|
|
36 |
LE451 (BN-YE) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) |
|
|
37 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) |
|
|
38 |
* |
* |
Not Used |
|
|
39 |
DE135 (BK) |
22 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) D |
|
|
40 |
RE429 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) |
|
|
41 |
VE707 (GN-VT) |
20 |
SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) |
|
|
42 |
VE738 (YE-BU) |
18 |
SENSOR - CAMSHAFT POSITION BANK 2 INT |
|
|
43 |
* |
* |
Not Used |
|
|
44 |
* |
* |
Not Used |
|
|
45 |
* |
* |
Not Used |
|
|
46 |
CE210 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) + |
|
|
47 |
VE712 (BU-GY) |
20 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
|
|
48 |
CMC24 (GY) |
18 |
SWITCH - OIL PRESSURE |
|
|
49 |
RE454 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 |
|
|
50 |
VE827 (WH-GN) |
18 |
SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) |
|
|
51 |
VE826 (BN-VT) |
18 |
SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) |
|
|
52 |
RE323 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - |
|
|
53 |
VE801 (VT-OG) |
18 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] |
|
|
54 |
RE429 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) |
|
|
55 |
VE706 (BN-BU) |
20 |
SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) |
|
|
56 |
VE736 (WH-GN) |
18 |
SENSOR - CAMSHAFT POSITION BANK 1 INT |
|
|
57 |
* |
* |
Not Used |
|
|
58 |
* |
* |
Not Used |
|
|
59 |
* |
* |
Not Used |
|
|
60 |
* |
* |
Not Used |
|
|
61 |
* |
* |
Not Used |
|
|
62 |
* |
* |
Not Used |
|
|
63 |
* |
* |
Not Used |
|
|
64 |
* |
* |
Not Used |
|
|
65 |
* |
* |
Not Used |
|
|
66 |
* |
* |
Not Used |
|
|
67 |
RE324 (BN-GN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] |
|
|
68 |
VE802 (BN-BU) |
18 |
SENSOR - KNOCK 2ND BANK 1ST (KS2N) [KSL2-] |
|
|
69 |
RE135 (GN-WH) |
18 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - |
|
|
70 |
VE711 (YE-VT) |
18 |
SENSOR - CRANKSHAFT POSITION (CKPP) + |
|
|
71 |
CE113 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) |
|
|
72 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] |
|
|
73 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] |
|
|
74 |
CET06 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] |
|
|
75 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] |
|
|
76 |
* |
* |
Not Used |
|
|
77 |
CET16 (WH-BU) |
18 |
CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL HIGH-SIDE 1 (SS-H1) [HMSS] |
|
|
78 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
|
|
79 |
CE236 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21) |
|
|
80 |
* |
* |
Not Used |
|
|
81 |
CE426 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) |
|
|
82 |
CE412 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) |
|
|
83 |
CE234 (BU-WH) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) |
|
|
84 |
CE235 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) |
|
|
85 |
* |
* |
Not Used |
|
|
86 |
* |
* |
Not Used |
|
|
87 |
* |
* |
Not Used |
|
|
88 |
CE305 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) |
|
|
89 |
CE306 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) |
|
|
90 |
CE307 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP-E) |
|
|
91 |
CET25 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
|
|
92 |
CE304 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) |
|
|
93 |
CE303 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) |
|
|
94 |
CE308 (VT-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F) |
|
|
95 |
* |
* |
Not Used |
