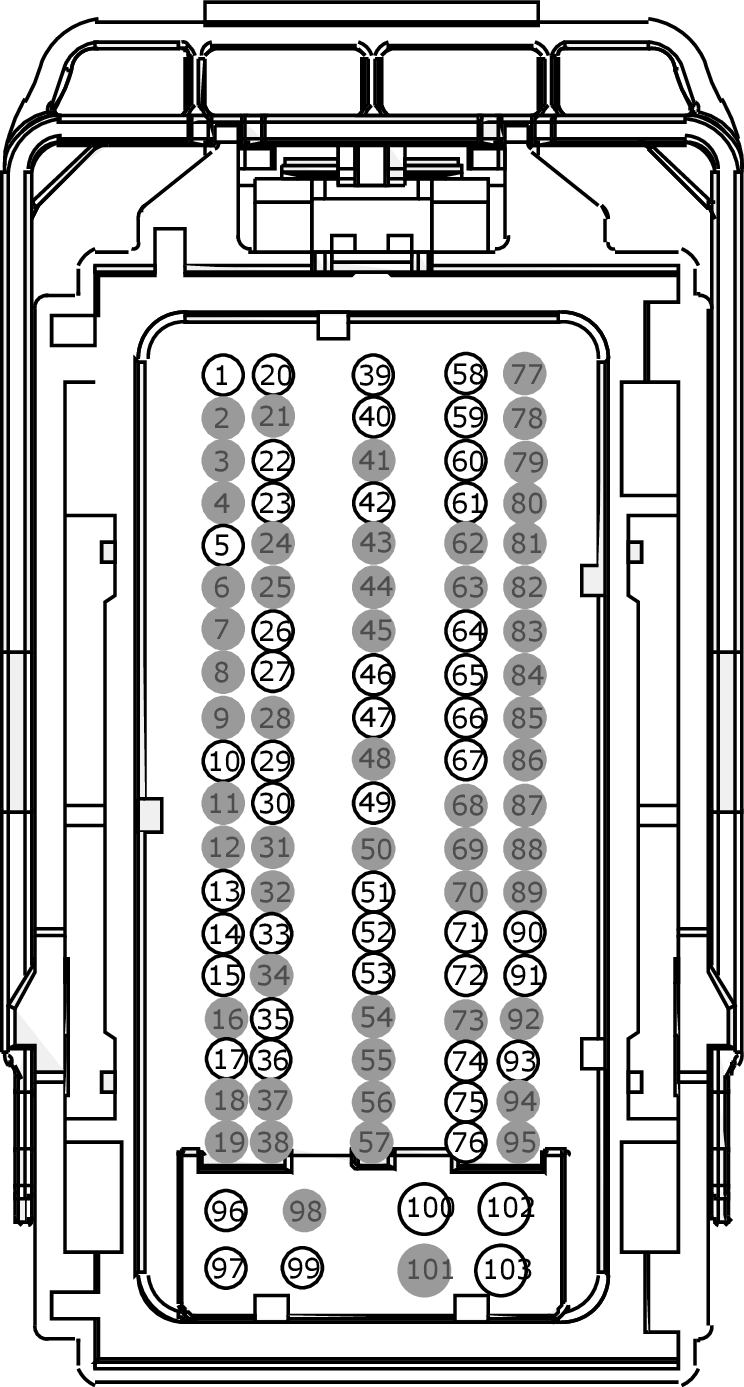

Connector End View (C1551B) - POWERTRAIN CONTROL MODULE (PCM)
Connector: C1551B
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CDC54 (WH-GN) |
22 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
GD113 (BK-YE) |
20 |
GROUND - COWL TOP RIGHT |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
CEC01 (WH-BU) |
22 |
CTRL MOD. - COOLING FAN CONTROL (FC2) |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
CDC10 (BU-OG) |
22 |
CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) |
|
|
14 |
VE225 (YE-OG) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) |
|
|
15 |
CH302 (WH-BN) |
22 |
CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
CEC02 (GN-BU) |
22 |
CTRL MOD. - COOLING FAN CONTROL (FC1) |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
CE302 (YE-BU) |
22 |
CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
CET42 (GN-VT) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
|
|
23 |
CET43 (GY) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
CDC15 (VT) |
22 |
GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) |
|
|
27 |
VE518 (BN-WH) |
22 |
MONITOR - FUEL PUMP (FPM) |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
LE230 (BN-BU) |
22 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) |
|
|
30 |
RE230 (WH-VT) |
22 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER |
|
|
31 |
* |
* |
Not Used |
|
|
32 |
* |
* |
Not Used |
|
|
33 |
VH433 (VT-OG) |
22 |
TRANSDUCER - A/C PRESSURE (ACPT) + |
|
|
34 |
* |
* |
Not Used |
|
|
35 |
RE136 (VT-GN) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) |
|
|
36 |
LE136 (GN-OG) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) |
|
|
37 |
* |
* |
Not Used |
|
|
38 |
* |
* |
Not Used |
|
|
39 |
CE114 (GN-BU) |
22 |
CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) |
|
|
40 |
LE137 (BU-GY) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) |
|
|
41 |
* |
* |
Not Used |
|
|
42 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # START |
|
|
43 |
* |
* |
Not Used |
|
|
44 |
* |
* |
Not Used |
|
|
45 |
* |
* |
Not Used |
|
|
46 |
VE922 (VT-GN) |
22 |
TRANSDUCER - FUEL TANK PRESSURE (FTPT) |
|
|
47 |
VE750 (GN-BU) |
22 |
SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) |
|
|
48 |
* |
* |
Not Used |
|
|
49 |
CE261 (GY-OG) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES) |
|
|
50 |
* |
* |
Not Used |
|
|
51 |
RE407 (YE-VT) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
|
|
52 |
LE424 (YE-GN) |
22 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) |
|
|
53 |
VDC61 (VT-GN) |
22 |
SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |
|
|
54 |
* |
* |
Not Used |
|
|
55 |
* |
* |
Not Used |
|
|
56 |
* |
* |
Not Used |
|
|
57 |
* |
* |
Not Used |
|
|
58 |
CDC12 (YE) |
22 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
|
|
59 |
RE137 (YE-GN) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) |
|
|
60 |
VE702 (BU-WH) |
22 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
|
|
61 |
VE701 (YE-OG) |
22 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
|
|
62 |
* |
* |
Not Used |
|
|
63 |
* |
* |
Not Used |
|
|
64 |
CBBA9 (WH-VT) |
22 |
FUSE - 109 OR CIRCUIT BREAKER |
|
|
65 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
|
|
66 |
CES09 (VT-OG) |
22 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + |
|
|
67 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
|
|
68 |
* |
* |
Not Used |
|
|
69 |
* |
* |
Not Used |
|
|
70 |
* |
* |
Not Used |
|
|
71 |
RE731 (WH-OG) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) |
|
|
72 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|
|
73 |
* |
* |
Not Used |
|
|
74 |
VDN06 (WH-GN) |
22 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 [REPLACED BY VE181] |
|
|
75 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
76 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
77 |
* |
* |
Not Used |
|
|
78 |
* |
* |
Not Used |
|
|
79 |
* |
* |
Not Used |
|
|
80 |
* |
* |
Not Used |
|
|
81 |
* |
* |
Not Used |
|
|
82 |
* |
* |
Not Used |
|
|
83 |
* |
* |
Not Used |
|
|
84 |
* |
* |
Not Used |
|
|
85 |
* |
* |
Not Used |
|
|
86 |
* |
* |
Not Used |
|
|
87 |
* |
* |
Not Used |
|
|
88 |
* |
* |
Not Used |
|
|
89 |
* |
* |
Not Used |
|
|
90 |
RE733 (GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) |
|
|
91 |
VE733 (WH) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) |
|
|
92 |
* |
* |
Not Used |
|
|
93 |
CET34 (BN-GN) |
22 |
SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS) |
|
|
94 |
* |
* |
Not Used |
|
|
95 |
* |
* |
Not Used |
|
|
96 |
CET45 (YE-BU) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 4 (SS4) |
|
|
97 |
CBB93 (GY-BN) |
20 |
FUSE - 93 OR CIRCUIT BREAKER |
|
|
98 |
* |
* |
Not Used |
|
|
99 |
CBB93 (GY-BN) |
20 |
FUSE - 93 OR CIRCUIT BREAKER |
|
|
100 |
GD113 (BK-YE) |
18 |
GROUND - COWL TOP RIGHT |
|
|
101 |
* |
* |
Not Used |
|
|
102 |
GD113 (BK-YE) |
18 |
GROUND - COWL TOP RIGHT |
|
|
103 |
GD113 (BK-YE) |
18 |
GROUND - COWL TOP RIGHT |
