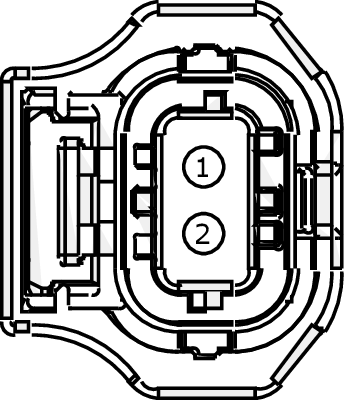

Connector End View (C1469) - OIL PRESSURE CONTROL SOLENOID
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1469
Description
OIL PRESSURE CONTROL SOLENOID
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
|
Pin
|
Circuit
|
Gauge
|
Circuit Function
|
Qualifier
|
|
1
|
CBK03 (GY)
|
18
|
FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)
|
|
2
|
VE821 (WH-VT)
|
18
|
SENSOR - VACUUM RESERVOIR PRESSURE (VRP)
|
