Connector End View (C1454) - MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1454

Description

MANIFOLD ABSOLUTE PRESSURE AND TEMPERATURE (MAPT) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)
2	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)
3	VE804 (GN-BN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +
4	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2

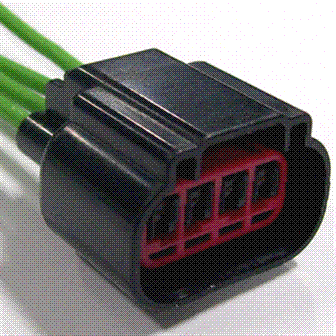

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1339

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SPC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Actuator - Intake Manifold Valve

Coil - Ignition

Lamp - Front Cornering/Turn

Lamp - Park/Turn

Sensor - Intake Manifold Runner Control

Sensor - Manifold Absolute Pressure (MAP)

Sensor - Manifold Pressure/Intake Temperature

Sensor - Turbine Shaft Speed

Sensor - Turbo Intake Pressure/Temperature

Switch - Sliding Door Contact
