Connector End View (C1260) - A/C PRESSURE TRANSDUCER

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RE407 (YE-VT)

22

CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)

2

VH433 (VT-OG)

22

TRANSDUCER - A/C PRESSURE (ACPT) +

3

LE424 (YE-GN)

22

CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)

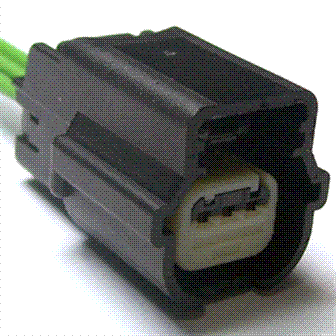

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1400

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-CC

Gauge:

20

Pin material:

Silver

Cavities:

3

Vehicle Uses

Monitor - Crankcase Ventilation

Sensor - Air Suspension

Sensor - Front Park Aid (FPA)

Sensor - Occupant Classification

Sensor - Reverse Park Aide (RPA)

Switch - A/C Compressor Clutch Cycling

Switch - A/C High Pressure

Pigtail Kit Part Number

WPT-1315

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-CB

Gauge:

20

Pin material:

Silver

Cavities:

3

Vehicle Uses

Monitor - Crankcase Ventilation

Sensor - Air Suspension

Sensor - Front Park Aid (FPA)

Sensor - Occupant Classification

Sensor - Reverse Park Aide (RPA)

Switch - A/C Compressor Clutch Cycling

Switch - A/C High Pressure
