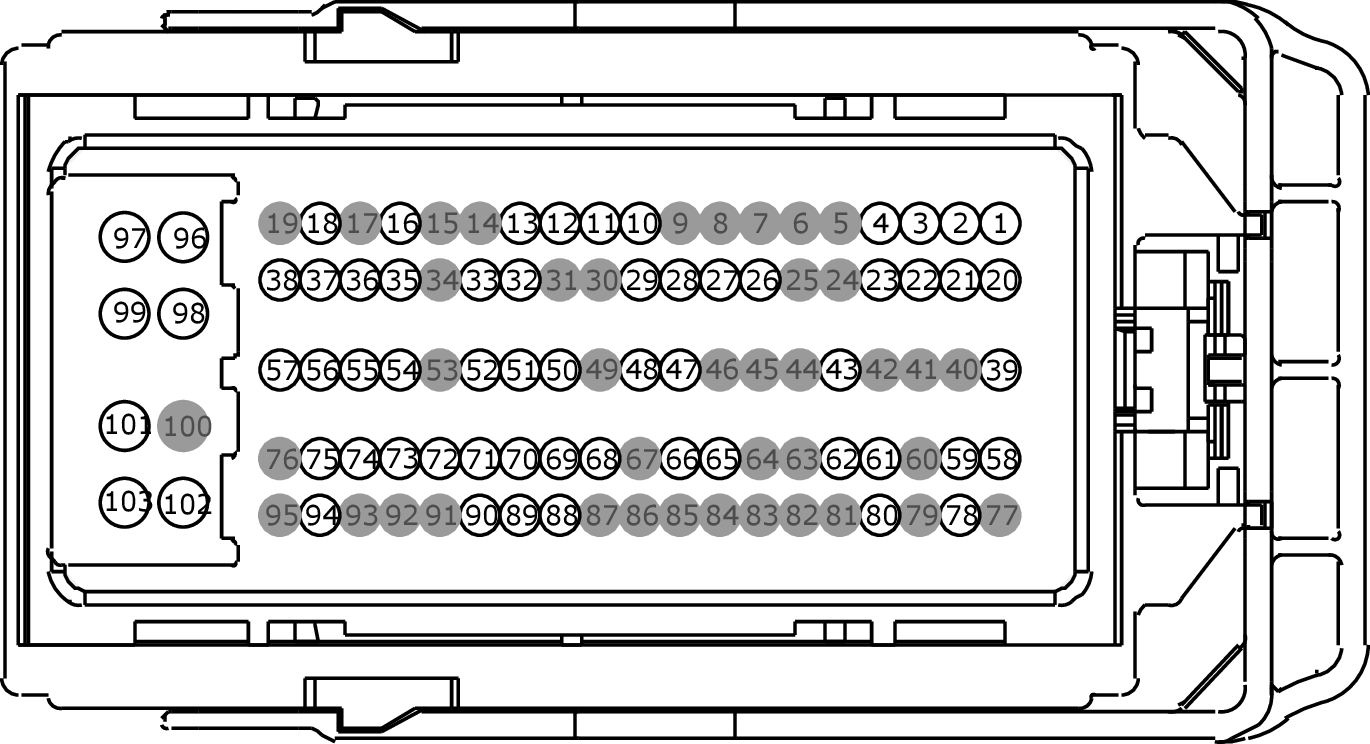

Connector End View (C1232B) - POWERTRAIN CONTROL MODULE (PCM)

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CE233 (WH-OG)

18

CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)

2

CH302 (WH-BN)

22

CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)

3

CH307 (GY-BU)

22

CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR)

4

CEC01 (WH-BU)

22

CTRL MOD. - COOLING FAN CONTROL (FC2)

5

*

*

Not Used

6

*

*

Not Used

7

*

*

Not Used

8

*

*

Not Used

9

*

*

Not Used

10

LE137 (BU-GY)

22

CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)

11

LE424 (YE-GN)

22

CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)

12

LE136 (GN-OG)

22

CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)

13

LE230 (BN-BU)

22

CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)

14

*

*

Not Used

15

*

*

Not Used

16

RE230 (WH-VT)

22

CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER

17

*

*

Not Used

18

RE407 (YE-VT)

22

CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)

19

*

*

Not Used

20

CE114 (GN-BU)

22

CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)

21

CE170 (WH-BU)

22

CTRL MOD. - POWERTRAIN # ENGINE START SIGNAL

22

CE113 (WH-BN)

22

CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)

23

CEC02 (GN-BU)

22

CTRL MOD. - COOLING FAN CONTROL (FC1)

24

*

*

Not Used

25

*

*

Not Used

26

CDC15 (VT)

22

GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI)

27

VE518 (BN-WH)

22

MONITOR - FUEL PUMP (FPM)

28

CE436 (VT-OG)

22

CTRL MOD. -WAKE UP PCM

29

CE261 (GY-OG)

22

CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES)

30

*

*

Not Used

31

*

*

Not Used

32

VE751 (BN-VT)

20

SENSOR - INTAKE AIR TEMPERATURE 2ND (IAT2)

33

VE850 (WH-VT)

22

SENSOR - WASTE GATE CONTROL PRESSURE (WGCP)

34

*

*

Not Used

35

RE137 (YE-GN)

22

CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)

36

RE136 (VT-GN)

22

CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)

37

RE733 (GN)

18

SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)

38

RE731 (WH-OG)

18

SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND)

39

VE225 (YE-OG)

22

CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)

40

*

*

Not Used

41

*

*

Not Used

42

*

*

Not Used

43

CDC12 (YE)

22

CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)

44

*

*

Not Used

45

*

*

Not Used

46

*

*

Not Used

47

CDC35 (BU-WH)

22

SWITCH - IGNITION # START

48

CBBA9 (WH-VT)

22

FUSE - 109 OR CIRCUIT BREAKER

49

*

*

Not Used

50

VDN06 (WH-GN)

22

CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 [REPLACED BY VE181]

51

VE750 (GN-BU)

22

SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)

52

VH433 (VT-OG)

22

TRANSDUCER - A/C PRESSURE (ACPT) +

53

*

*

Not Used

54

VE702 (BU-WH)

22

SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)

55

VE701 (YE-OG)

22

SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)

56

VE733 (WH)

18

SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)

57

VE731 (YE-GN)

18

SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)

58

CE302 (YE-BU)

22

CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC)

59

CDC10 (BU-OG)

22

CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC)

60

*

*

Not Used

61

CE234 (BU-WH)

18

CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22)

62

CDC54 (WH-GN)

22

CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)

63

*

*

Not Used

64

*

*

Not Used

65

CES09 (VT-OG)

22

SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +

66

CCB08 (VT-WH)

22

SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN

67

*

*

Not Used

68

VDB05 (WH)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW

69

VDB04 (WH-BU)

22

CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH

70

VE774 (YE-GN)

22

SENSOR - ENGINE OIL PRESSURE +

71

VE727 (BU-BN)

22

SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)

72

VE779 (YE-GN)

22

SENSOR - CRANKCASE PRESSURE

73

VE922 (VT-GN)

22

TRANSDUCER - FUEL TANK PRESSURE (FTPT)

74

VE805 (GY-OG)

20

SENSOR - MANIFOLD TEMPERATURE +

75

VE740 (VT-GY)

20

SENSOR - INTAKE AIR TEMPERATURE (IAT)

76

*

*

Not Used

77

*

*

Not Used

78

CE358 (GY-YE)

22

CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL

79

*

*

Not Used

80

CE420 (GY-VT)

22

CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC)

81

*

*

Not Used

82

*

*

Not Used

83

*

*

Not Used

84

*

*

Not Used

85

*

*

Not Used

86

*

*

Not Used

87

*

*

Not Used

88

CET42 (GN-VT)

22

SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)

89

CET43 (GY)

22

SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)

90

CET34 (BN-GN)

22

SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS)

91

*

*

Not Used

92

*

*

Not Used

93

*

*

Not Used

94

VDC61 (VT-GN)

22

SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR

95

*

*

Not Used

96

GD113 (BK-YE)

20

GROUND - COWL TOP RIGHT

97

GD113 (BK-YE)

20

GROUND - COWL TOP RIGHT

98

GD113 (BK-YE)

20

GROUND - COWL TOP RIGHT

99

GD113 (BK-YE)

20

GROUND - COWL TOP RIGHT

100

*

*

Not Used

101

CBB93 (GY-BN)

20

FUSE - 93 OR CIRCUIT BREAKER

102

CBB93 (GY-BN)

20

FUSE - 93 OR CIRCUIT BREAKER

103

CBB93 (GY-BN)

20

FUSE - 93 OR CIRCUIT BREAKER
