Connector End View (C1196) - EVAPORATIVE EMISSION (EVAP) PURGE VALVE
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1196
Description
EVAPORATIVE EMISSION (EVAP) PURGE VALVE
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE113 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) |
|
|
2 |
CBK02 (GN) |
18 |
FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) |
|

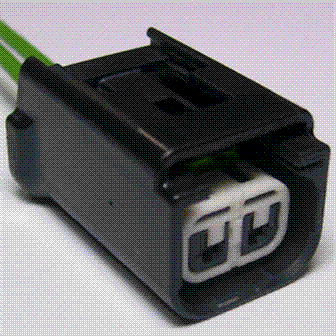

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1133 |
Service Part Number: BU2Z-14S411-FA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Coil - Ignition |
